GIGABYTE X99 SLI Review, Excellence On A Budget!

GIGABYTE X99 SLI Review, Excellence On A Budget!

GIGABYTE has released an entire pack of motherboards based on the Intel X99 chipset: Champion, Gaming, and Super Overclock. And now GIGABYTE has released the X99-SLI board. From the first glance, the board looks to be chock full of enthusiast-level hardware, with lots to offer most end users. To field the board with all that high-end hardware at $250 (NewEgg) , they had to make a few compromises, but based on price/performance, there’s a good bang for the buck factor on the GIGABYTE GA-X99-SLI. Reality being what it is, we are seeing a lot of high-end motherboard features on a $250 board, but there might be a few after-purchase costs. Wi-Fi and Bluetooth aren’t included on the board, but a special M.2. slot for Wi-Fi and Bluetooth are provided for by a W2-Wi-Fi slot. The combo cards we’ve seen are in the 35-40 dollar range, so if you want internal Wi-Fi and Bluetooth, that may set you back a few bucks.

We don’t consider not including some of the fancier options as bad, as it does place a lot of enthusiast level hardware in a price bracket that is less painful for a lot of consumers. Looking at what you do get, there’s ALC 1150 audio with fine gold capacitors, Intel LAN and up to Quad SLI (with the right CPU), and 8 RAM slots supporting OCs up to 3333 MHz via Intel XMP support.

Important to us, GIGABYTE squeezed in their Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage ICs which is the MOSFET setup you see on competitor’s high-end, high-priced boards. The Digital PWM & PowlRstage MOSFETs, given adequate cooling, have proven to be excellent overclocking hardware and can be found on boards ranging from $300 to $600. It’s a first for us to see that “geek candy” on a $250 board, so job well done Gigabyte.

The Realtek ALC1150 115dB SNR HD audio, with built-in Rear Audio Amplifier, independent right and left audio channel PCB layers that prevent crosstalk, and high-end Nichicon audio capacitors are about as good as it gets when it comes to audio.

GIGABYTE even stuffed their Long Lifespan Durable Black solid capacitors, with an expected life of 10k hours, on this feature-packed board. What else could you want for your $250? Well, how about a gold-plated CPU socket, DIMM sockets and PCI-E sockets to ensure that corrosion doesn’t cut into your high-end computing enjoyment.

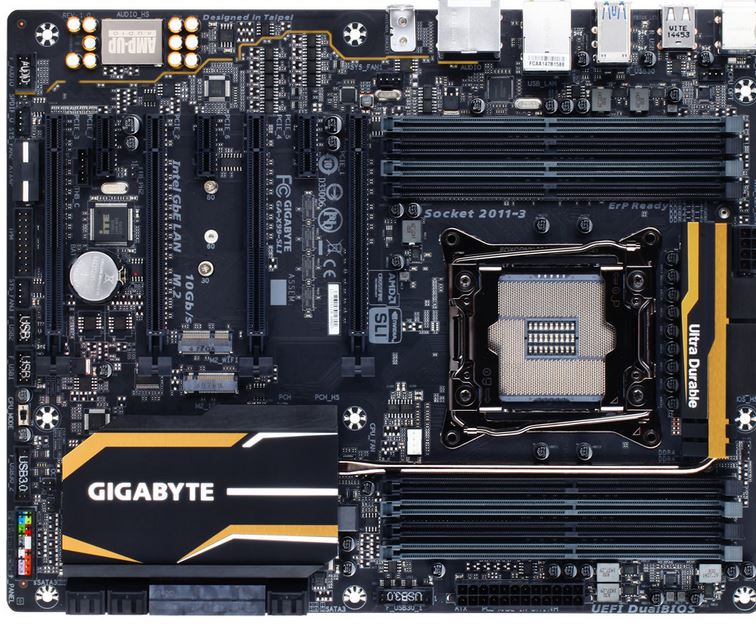

GIgabyte_X99_SLI_12

Now don’t get us wrong, this is a great board with a lot of high-end features packed on it, but like with most affordable boards, certain compromises have to be made to field the board at the wallet-comfortable price of $250. Most of the cost cutting measures are extras like built-in Wi-Fi and Bluetooth and on-board On/Off and reset buttons. No double-digit debugger, so what we are looking at is a budget-friendly board with enthusiast-level hardware, minus all the frills that seldom get used anyway. With all the high-end goodies packed on the board, we aren’t going to miss the on-board buttons much, and in a strange way, it takes us back to days when we kept the on switch screw driver or razor blade on our test bench. Those of us with a little “ghetto mod” in our blood used old chassis connectors and just shorted the wires for On, Off and Reset prior to casing the boards. Computing caught up to the bench needs, and for around $19, you can get professionally wired switches for bench testing, so the absence of on-board buttons is easily bypassed for us bench warriors.



GIGABYTE X99-SLI Specifications
CPU
  • Support for Intel® Coreâ„¢ i7 processors in the LGA2011-3 package
  • L3 cache varies with CPU
Chipset
  • Intel® X99 Express Chipset
Memory
  • 8 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  • 4 channel memory architecture
  • Support for DDR4 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Support for RDIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operates in non-ECC mode)
Audio
  • Realtek ALC1150 CODEC
  • High Definition Audio
  • 2/4/5.1/7.1 Channel
  • Support for S/PDIF Out
LAN
  • Intel GbE LAN Chip (10/100/1000 Mbit)
Expansion Slots
  • 2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2)
  • 2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4)
  • 3 x PCI Express x1 slots
  • 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Multi-GPU
  • Support for 4-Way/3-Way/2-Way AMD CrossFireâ„¢/NVIDIA® SLIâ„¢ technology
Storage Chipset:

  • 1 x M.2 PCIe connector(Socket 3, M key, type 2242/2260/2280 SATA & PCIe x2/x1 SSD support)
  • 1 x SATA Express connector
  • 6 x SATA 6Gb/s connectors (SATA3 0~5)
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10

Chipset:

  • 4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
USB Chipset:

  • 4 x USB 3.0/2.0 ports (available through the internal USB header)
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset + Renesas®uPD720210 USB 3.0 Hub:

  • 4 x USB 3.0/2.0 ports on the back panel
Internal I/O
  • 1 x 24-pin ATX main power connectorŠ
  • 1 x 8-pin ATX 12V power connector
  • 1 x PCIe power connector
  • 1 x M.2 Socket 3 connector
  • 1 x SATA Express connector
  • 10 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x water cooling fan header (CPU_OPT)
  • 3 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 2 x USB 3.0/2.0 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header
  • 1 x Thunderbolt add-in card connectorŠ
  • 1 x Clear CMOS jumper
Back Panel Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 4 x USB 3.0/2.0 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x optical S/PDIF Out connector
  • 1 x RJ-45 port
  • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out)
  • 2 x Wi-Fi antenna connector holes
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • System voltage detection
  • CPU/System/Chipset temperature detection
  • CPU/CPU OPT/System fan speed detection
  • CPU/System/Chipset overheating warning
  • CPU/CPU OPT/System fan fail warning
  • CPU/CPU OPT/System fan speed control
BIOS
  • 2 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOSâ„¢
  • Support for Q-Flash Plus
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.@BIOSAmbient LEDEasyTuneEZSetupFastBootGameControllerCloudStationON/OFF ChargeSmart TimeLockSmart Recovery 2System Information ViewerUSB BlockerV-Tuner
  • Support for Q-Flash
  • Support for Smart Switch
  • Support for Xpress Install
OS Support
  • Support for Windows 8.1/8/7
Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
Warranty
  • 3-Year



One thing that jumps out at us is the extended XMP, which goes up to an amazing 3333 MHz. You just don’t find features like that on budget boards.
