Zotac GeForce GTX760 AMP! Edition

zotac_front

NVIDIA continues to push out GPU’s in the 7xx-series and today it is time for the GTX760 , a mid-level card that will replace the GTX660 Ti. Zotac sent us their pre-overclocked Zotac GeForce 760 AMP! Edition-card, which turned out to be a good performer.

The GTX760

Just like the GTX680 and the GTX770 the GTX760 is based on the GK104 Kepler. The speeds have been trimmed down a bit so it fits the price point it is being sold at.

This is the specifications for the reference GTX760. Since this is a pre-overclocked AMP!-edition card it means Zotac has increased the base clock and memory speeds a bit.

        GTX 680    GTX 780 GTX 770

GTX 760

Zotac GTX760 AMP!

Stream Processors

1536

2304

1536

1152

1152

Texture Units 128 192 128 96 96
ROP’s 32 48 32 32 32
Base Core Clock 1006MHz 863MHz 1046MHz 980MHz 1100MHz
Boost Clock 1058MHz 900MHz 1085MHz 1033MHz 1176MHz
Memory Clock 6008MHz 6008MHz 7010MHz 6008MHz 6208MHz
Memory Interface 256-bit 384-Bit 256-bit 256-bit 256-bit
Memory Qty 2GB 3GB 2GB or 4GB 2GB or 4GB 2 GB
TDP 195W 250W 230W 170W 170W
Transistors 3.5B 7.1B 3.54B 3.54B 3.54B
Manufacturing process 28nm 28nm 28nm 28nm 28nm
Price $499 $649 $399 $249  ~$249

What we get is a 12% increase in base clock from 980 MHz to 1110 MHz and a minor 3% increase in the memory speed from 6008 MHz to 6208 MHz.

GTX760 features

We cover the full set of features of the GTX 760 in our main article so here is just a short summary.

Adaptive Temperature Controllers – stops the fan-speed to ramp up all the time making it quiet.

GPU Boost 2.0 – This allows you to set a thermal target, which then allows the card to run faster as it dynamically overclocks the card until it reaches the target temperature. This can be combined with increasing the voltage.

Adaptive V-Sync – Adaptive VSync is Nvidia’s way of providing a smooth game playability even when the frame rates falls below 60 fps. With the Adaptive VSync, the FPS no longer drops to the lower refresh rate that the monitor supports. Instead the VSync will automatically be turned on and off depending on the on the frame rate. When the FPS dips below 60Hz, VSync will be turned off and when the FPS recovers to 60 FPS, VSync will once again be enabled.

GeForce Experience Software – The GeForce Experience-software is now out of beta and is extra interesting for the GTX760 as it helps mid-level and low-level cards to get the best out of games without having to sacrifice to much visual fidelity.

The Card

full_card

 As with the Zotac GTX 770, this card does not use the reference cooler and instead uses Zotacs own special cooler which is supposed to make it quieter while allowing the card to run cool. The card is not long, especially when compared to the GTX Titan or GTX 780.

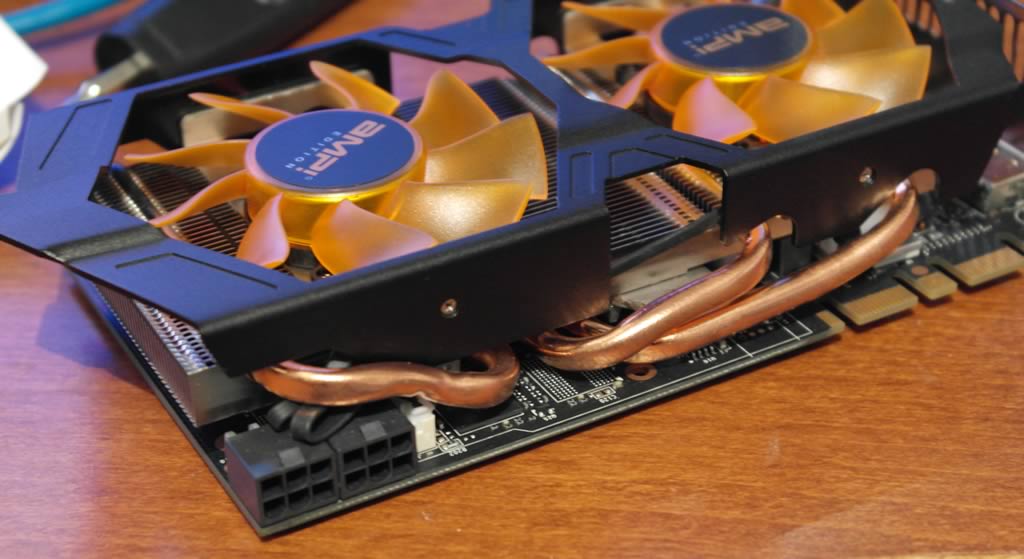

cooler

Here we see the heat-pipes that help cool the GPU and the rest of the chips. The card uses 2 6-pin PCI-express power connectors.

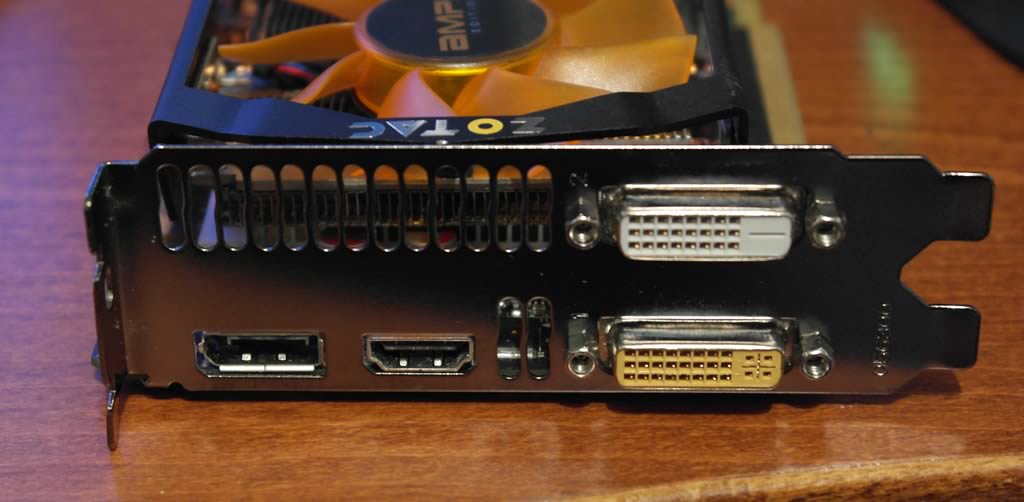

connectors

 We get the same connectors as all the other cards: 1xDisplayPort and 1xHDMI, 2xDVI.

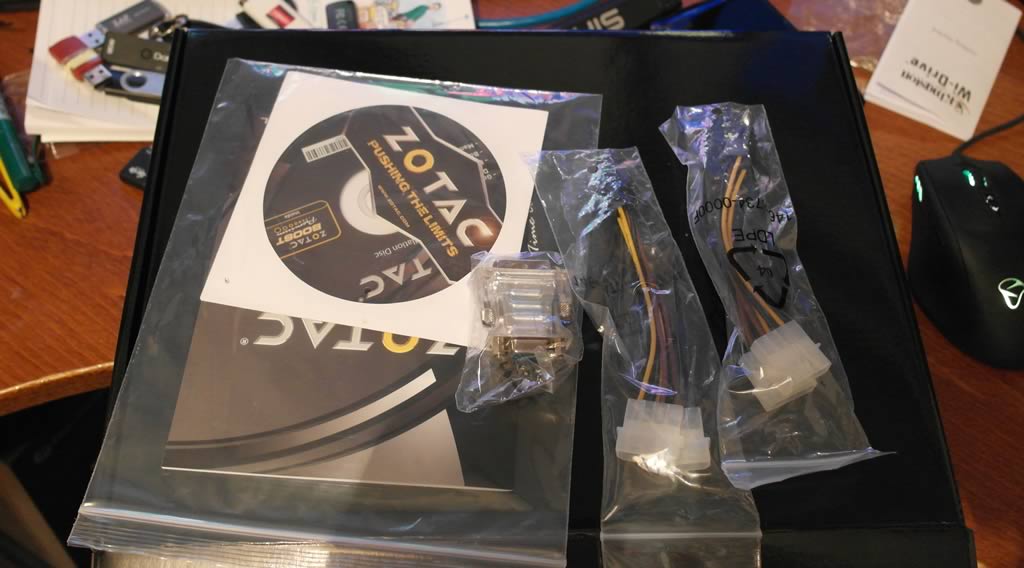

bundle

While Zotac includes games with their GTX Titan, GTX 780 and GTX 770 they have decided not to include anything with the GTX760. That is a bit of a disappointment but should keep the price down. What we get is a few adapters and a DVD with drivers, the Zotac overclocking software, Unigine Heaven benchmark, XBMC and Nero Kwikmedia.

Testing Methodology

The OS we use is Windows 8 Pro 64bit with all patches and updates applied. We also use the latest drivers available for the motherboard and any devices attached to the computer. We do not disable background tasks or tweak the OS or system in any way. We turn off drive indexing and daily defragging. We also turn off Prefetch and Superfetch. This is not an attempt to produce bigger benchmark numbers. Drive indexing and defragging can interfere with testing and produce confusing numbers. If a test were to be run while a drive was being indexed or defragged, and then the same test was later run when these processes were off, the two results would be contradictory and erroneous. As we cannot control when defragging and indexing occur precisely enough to guarantee that they won’t interfere with testing, we opt to disable the features entirely.

Prefetch tries to predict what users will load the next time they boot the machine by caching the relevant files and storing them for later use. We want to learn how the program runs without any of the files being cached, and we disable it so that each test run we do not have to clear pre-fetch to get accurate numbers. Lastly we disable Superfetch. Superfetch loads often-used programs into the memory. It is one of the reasons that Windows Vista occupies so much memory. Vista fills the memory in an attempt to predict what users will load. Having one test run with files cached, and another test run with the files un-cached would result in inaccurate numbers. Again, since we can’t control its timings so precisely, it we turn it off. Because these four features can potentially interfere with benchmarking, and and are out of our control, we disable them. We do not disable anything else.

We ran each test a total of 3 times, and reported the average score from all three scores. Benchmark screenshots are of the median result. Anomalous results were discounted and the benchmarks were rerun.

Test Rig

Test Rig
Case Thermaltake Level 10
CPUs Intel Core i7-3930 @3.2 Ghz
Motherboards ASUS P79X Deluxe
Ram 32 GB
CPU Cooler Corsair H100
GPU

Zotac GeForce GTX 760 AMP!

Zotac GeForce GTX 770

Zotac GeForce GTX 780

Asus GeForce GTX Titan

Zotac GeForce GTX Titan AMP!

Zotac GeForce GTX 680

GeForce Drivers

320.14 (GTX 680, 690 and TITAN)

320.18 (GTX 780, GTX760 AMP!)

320.08 (GTX 770) – This is the version included on the CD, none of the downloadable worked.

Synthetic Benchmarks & Games

We will use the following applications to benchmark the performance of the Zotac GeForce GTX 760 video card.

Synthetic Benchmarks & Games

Benchmarks
3DMark11
3DMark Firestrike & Firestrike Extreme
Unigine Valley benchmark
Crysis 3
Bioshock Infinite

3DMark 11

3dm11

The new Zotac GTX 760 slots in just below the GTX680 and the GTX770.

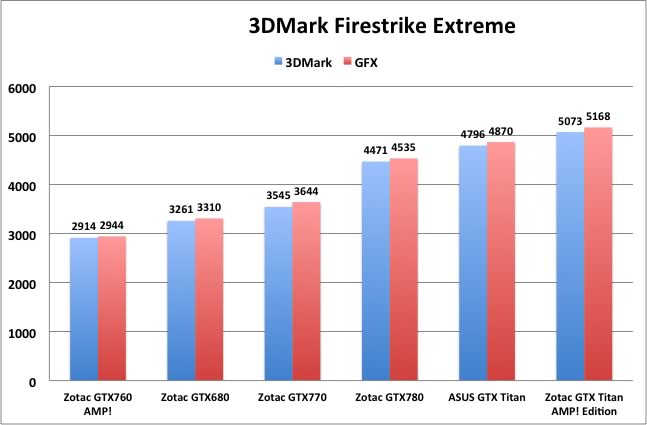

 3DMark 2013 – Firestrike

3dm13_xtr

 Again the GTX 760 just trails the GTX 680.

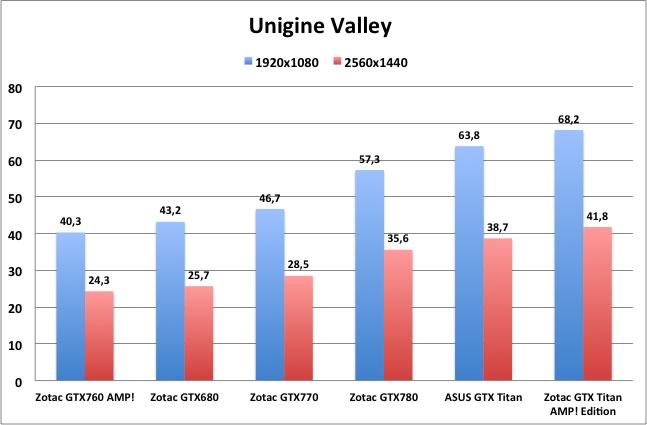

Unigine Valley

valley

Setting: 8xAA, Ultra

In the new Unigine Valley-benchmark the GTX770 scores just below the GTX680.

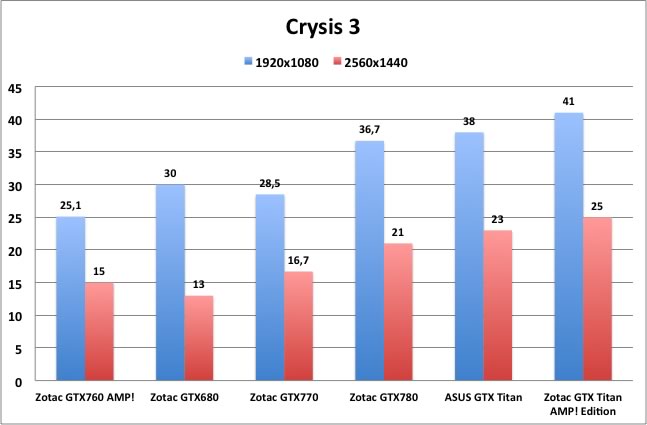

 Crysis 3

We used Fraps to record the framerate while running through the ship in the beginning of the game fighting a few guys, blowing up a crate and some other action.

crysis3

Setting: 8xAA, 16xAF, Very High Texture resolution, Very High all other settings

It would not be a Crysis-game if it did not tax the system a lot. As evident from the scores neither card really is playable at these settings and we would need to turn off/down a few settings to use it in the game. This is a good game to use the GeForce Experience Software with, something we will look at a bit later in this review.

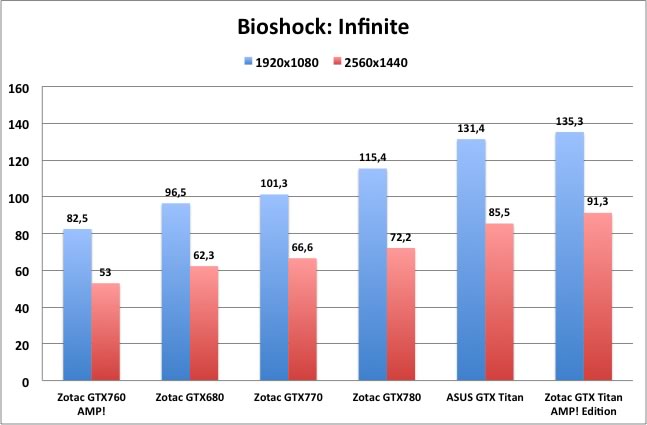

Bioshock Infinite

bioshock

 Setting: Using Adrenaline Benchmark Tool: Ultra, 16xAF

While the GTX760 is about 15% slower than a GTX680 it still produces very good framerates in this new game.

The GeForce Experience experience

We talked earlier in this review about the GeForce Experience Software that helps the user to set the optimal settings in a game depending on what card they have. Considering that we see that in some games the Zotac GeForce GTX760 AMP! struggles to produce playable framerates at the ultra high settings that we use we felt that it would be a perfect time to see what the program would suggest for changes to Crysis 3 and Bioshock:Infinite.

In Bioshock Infinite the software actually did not think we needed to change anything and if we look at the scores it is pretty obvious why. Sure, the card is slower than the other cards we have tested but with an average framerate of 53 fps at 2560×1440 it feels pretty unnecessary to start lowering the fidelity of the graphics.

In Crysis 3 though things are different. With an average framerate of 25 fps at 1920×1080 and 15 fps at 2560×1440 there is a lot of room for improvement. We let the program look up the best settings for the game. What the program suggested was to lower Anti-aliasing from 8x SMAA high to 1x SMAA low and to lower some of the other settings like shadows from very high to medium or high instead. Said and done we then ran the same benchmark.

First of all lets be clear that to us the image quality still was superb. It is obvious that you do not need high anti-aliasing when running at 1920×1080 or 2560×2440.

geforceEx

Just by changing a few settings we go from unplayable to great framerates. And that while still getting superb image quality.

Overclocking

Overclocking the GTX 760 is just as weird as the GTX 760, the GTX 770 and the GTX Titan. Since the card already is overclocking itself dynamically via NVIDIA Boost 2 you never are sure what you will end up with when setting a target clock in MSI Afterburner or Zotac Firestorm. We did a quick test to overclock this card and increased the target temperature to around 90C and allowed the card to use 105% if the power draw.

We had some issues overclocking the card. We could increase the base clock to 1200 MHz which is a 10% overclock but we could not increase the memory clock at all. And going over 1200 MHz gave us a “Driver not responding”-error in the newest 3DMark. It probably is a bit unfair to complain that we could not overclock the card even further since it already is overclocked out of the box but it always is nice when we can squeeze a bit more performance from the card. The 10% overclock only gave u about 5% higher score in 3Dmark so it might not be worth it anyway.

Summary

We have not found a price for the Zotac GTX 760 AMP! Edition in the US yet but looking at the prices in Sweden it looks like it should be similar to the other GTX760 cards which means at around $250. This is a great price for a mid-level card that is already overclocked. The only thin we really can complain about is the fact that it does not come with either the Assassins Creed or Splinter Cell-bundle that we see with Zotacs better cards.

OUR VERDICT: Zotac GTX 760 AMP!
Performance 7
Value 8
Quality 9
Features 9
Innovation 7
We are using a new addition to our scoring system to provide additional feedback beyond a flat score. Please note that the final score isn’t an aggregate average of the new rating system.
Total 8
Pros Cons

Good price

Overclocked out of the box

Silent and effective cooler

Problems overclocking it further

No games in bundle



Summary: The Zotac GTX 760 AMP! edition card is a great mid-level card that comes overclocked out of the box.
